Turning the carb upside down you should see the beige plastic float (20). Usually the inside of the float bowl is pretty filthy, so clean it out well. As you remove the float bowl (22) gas might leak out so catch any excess gas with the dofu container. There is also a red metal washer (23) on the bolt. Remove the large 14mm bolt (24) at the bottom of the float bowl.
#Toro ccr 2000 free
Your carb should be now free from the machine. As you wiggle the carb gas might come out, so catch any in the dofu container. You will need to turn the carb right and left to wiggle out of the ‘z’ wire. There is a small spring that goes into the same hole as the throttle cable. Thanks, Mikuni, for making these bolts standard to the bicycle hex wrench! Disconnect the ‘z’ shaped throttle cable. They are long and attach the carb to the engine body. Remove the 2 black carb bolts (1), hex 5 and a ‘u’ shaped metal cover or spit cup (2), facing outward. The choke is the large black block of plastic visible from the rear of the engine cover. Disconnect the choke wire, which is thick. Disconnect the other smaller black tube, which attaches to the primer pump on the front cover. As I drain my tank after every winter I had nothing to drain. Use the needle nose pliers to release the pressure, then slide the clamp down the tube, which will now remove quite easily. It is attached with a green spring clamp. You should clearly see the float bowl in brass.ĭisconnect the fuel line, which goes from the fuel tank to the carb. The front metal plate, which is behind the plastic cover, is attached to the machine near the handles, bolts one on each side, 10mm, Wiggle the cover up, watch the plastic ears on each side, then pass the plastic cover rearward between the handles.
Remove the front cover screws, one on each side, 8mm.

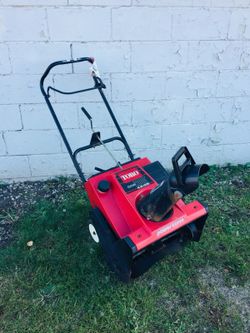

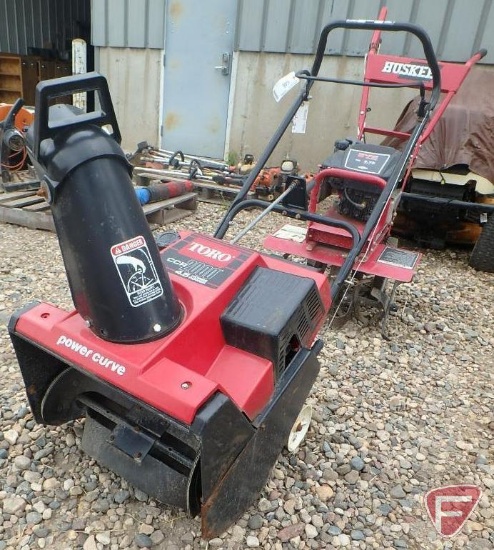

I’ve done this a couple of times without issue. needle nose pliers: to remove the fuel line clamp Few tools are required, it is pretty easy and it should take you a leisurely 30 minutes. There are diagrams and videos on the internet, but no one has really documented a good carb clean for the Mikuni 38180. The Toro CCR 2000 snowblower circa 1995 is much more famous than my Canadian Tire model # 318-180-515, 3-21″ model. The Toro needs a carb clean, which I will do today. I changed the plug but it did not restart, so I had to resort to my trusty Canadian Tire snowblower, which I do maintain. Raining, it is today and 14C, but my new-to-me Toro CCR 2000 snowblower, last winter, started once, sputtered and quit. Toro CCR 2000 snowblower, Mikuni Carb 38180 diagram, 1995
